Working on concrete without knowing what's inside is a serious professional gamble. It's an unnecessary risk that introduces unpredictable costs into a project that demands precision.
This guide is all about how to locate rebar in concrete effectively. We want to show you how to move from guessing to knowing, ensuring every core drill and anchor bolt is placed with total confidence.
Why Locating Rebar is a Non-Negotiable Step
Let's be honest, we've seen this story play out too many times in the field. The work is moving along on schedule, and then that awful, high-pitched grinding sound brings everything to an immediate halt. You've just hit unseen steel.
The real damage goes much deeper than the initial frustration, creating a ripple effect of problems. A key part of professional practice is understanding how to locate rebar in concrete before you drill to prevent these issues.
Hitting rebar can lead to a cascade of problems, including:
- Immediate Equipment Costs: The most obvious result is a ruined, expensive drill or coring bit that needs immediate replacement.
- Project Delays and Budget Overruns: Work stops while a new bit is sourced, pushing back timelines and adding unforeseen labor costs for the downtime.
- Structural Compromises: Accidentally hitting reinforcement can create micro-fractures and weaken the integrity of the concrete around the drill site.
- Serious Safety Hazards: In the worst-case scenario, you could hit a live electrical conduit or a post-tension cable, which has severe, high-stakes safety implications.
We believe finding that steel first isn't just a good idea; it's a fundamental part of running a smooth, safe, and profitable job.
How to Use a Rebar Locator: A Step-by-Step Guide
Fortunately, getting a feel for these instruments is a quick process. They are designed for job-site efficiency. This section will show you how to use a rebar locator with confidence, making it a regular part of your pre-work checklist.
1. Power On and Calibrate
The first thing you do is turn the unit on. The next step, however, is the one we see people skip, and it's absolutely essential for accuracy: you have to calibrate it.
Different concrete slabs have varying compositions and moisture levels which can slightly affect the instrument's readings. By placing the locator on a section of concrete you're confident is clear of metal, you allow the machine to zero itself out to those specific conditions.
This single action is what ensures the depth readings you get are genuinely accurate and not just a close guess.
2. Scan the Surface
Now, perform a slow, deliberate pass across the concrete surface. The key is a consistent speed—not too fast, not too slow—to give the sensor time to get a clear reading.
For larger areas, we recommend scanning in a grid pattern, first horizontally and then vertically. This method guarantees complete coverage and helps you identify the orientation of the rebar grid.
As the instrument gets closer to a metallic object, it will give you clear visual and audible signals that intensify as you approach the target.
3. Pinpoint the Center
When the unit gives its strongest signal, you've found your spot. Our advice for true precision is to approach that spot from all four directions—north, south, east, and west.
The point where all signals converge at their absolute maximum strength is the dead center of the rebar. Go ahead and mark this clearly for your team.
We also suggest making a small line to indicate the direction the bar is running, which is incredibly helpful for planning subsequent drill points.
4. Determine the Concrete Cover
A quality locator will also provide a reliable measurement of the concrete cover—that is, the thickness of the concrete between the surface and the top of the rebar.
This isn't just a nice-to-know feature; it's critical information for anyone who needs to know how to locate rebar in concrete for engineering or compliance checks.

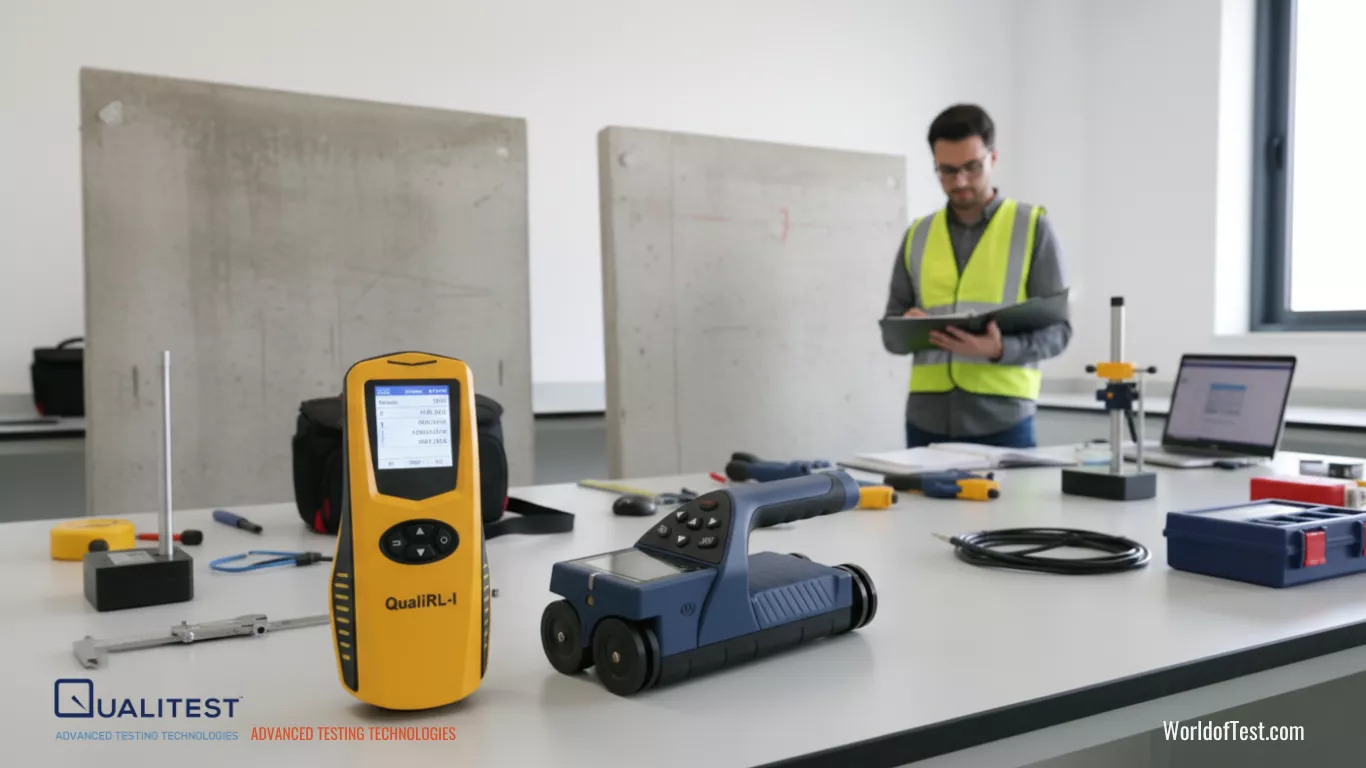

Choosing the Right Tool to Locate Rebar in Concrete
Selecting the right instrument is crucial for efficiency. At Qualitest, we provide the industry's two leading technologies, ensuring you have the right tool for your specific application.
For the primary task of finding steel, our QualiRL-I and QualiRL-II are the purpose-built solution. They are fast, cost-effective, and designed to accurately pinpoint metallic rebar, making them the standard choice for daily construction, drilling, and inspection work.
For a complete structural investigation, our QualiGPR Ground Penetrating Radar Systems provide a much deeper level of analysis. GPR sees everything—it locates rebar but also detects non-metallic elements like PVC conduits, measures slab thickness, and can identify voids. It is the definitive tool for complex diagnostics or when a full subsurface map is required.
In short, if your goal is to find metal, our QualiRL series is the direct answer. If you need to see a complete picture of everything inside the concrete, GPR is the solution.
Read more: Rebar Locator vs GPR: Which Tool is RIght for You?
Common On-Site Challenges (And How to Address Them)
Even the best instruments can face tricky situations on a real-world job site. Mastering how to use a rebar locator also means knowing how to handle these common issues.
The Challenge: Congested Reinforcement
In heavily reinforced concrete, like columns or beams, the signals from tightly spaced bars can begin to "bleed" into each other. The solution we recommend is to use a unit with a high-resolution search head built for these conditions.
We've also found that simply scanning at different angles can often provide the clarity needed to separate one bar from another.
The Challenge: Limited Depth Penetration
You're working with a thick foundation slab, and the instrument's signal isn't reaching deep enough. Remember that high moisture content can also reduce signal depth.
The solution is to always verify the instrument's depth specifications before you start a project. We advise clients to select a tool with a maximum range that safely exceeds the requirements of their most demanding typical projects.
The Challenge: Signal Interference
Nearby metallic structures like steel beams can sometimes affect the magnetic field of an eddy current locator.
The solution is to perform a quick verification scan on a known, clear element of the structure before starting the main work. We feel this is a vital quality control step to confirm the unit's readings are accurate in that specific environment.
Certainty with a Qualitest Rebar Locator
Choosing the right rebar locator is key to your operational efficiency. Whether the straightforward precision of the QualiRL-I is a perfect match, or your projects demand the advanced features of the QualiRL-II, our experts are here to help.
Our goal is to understand the challenges you face on the job site so we can recommend the most effective and cost-efficient rebar locator for your team.
Contact us today for a professional consultation focused specifically on your rebar locating needs. Let's equip your team with the best Qualitest rebar locator for the job and make sure every project is built on a foundation of certainty.
