There are plenty of factors affecting asphalt compaction. It can be the material properties and base layer conditions, the temperature outside, and even how the rollers are run.
So how do you keep compaction under control? In this article, Qualitest walks you through the key factors you need to watch out for, the right ways to test compaction both in the lab and on-site, and the best practices that help get the job done right.
Why Asphalt Compaction Matters
Good compaction means the asphalt-coated aggregates are tightly packed, giving the pavement strength and resistance to moisture and deformation. If the compaction falls short, you’re left with a road that’s more prone to cracking, rutting, and water damage.
Everything from the mix temperature to the speed and pattern of your rollers can influence how well the asphalt sets. Even something as seemingly minor as a sudden drop in ambient temperature or a delay between paving and rolling can throw off the entire compaction effort.
In other words, if you want a pavement that performs reliably under traffic and weather stress, you need to control the variables that shape its density from day one.
Key Factors Affecting Asphalt Compaction
Factors affecting asphalt compaction can generally be grouped into three categories. Let’s break down each of them below:
1. Environmental Factors
Compaction doesn’t happen in a vacuum. Air temperature, ground temperature, wind speed, and even sunlight all influence how quickly asphalt loses heat. As we all know, when it comes to proper compaction, temperature is one element you simply can’t ignore.
If the mix cools down too fast, you can miss the critical window for effective compaction. That’s why paving in colder weather or under strong winds can be tricky; both conditions accelerate cooling and make compaction more difficult.
2. Mix Property Factors
The makeup of your asphalt mix matters just as much. Aggregate size, shape, and gradation affect how well the particles lock together.
A well-graded mix compacts more uniformly, while mixes with rounded particles or poor gradation tend to resist compaction. On top of that, the type of binder used also plays a key role. Its chemical and physical properties influence the mix’s workability and how it responds to compaction force.
Related Content to Read: Marshall Method vs Superpave: Key Differences in Asphalt Mix Design
3. Construction Factors
Out in the field, how you handle compaction makes all the difference. The number, type, and weight of rollers, along with their speed, timing, and pattern, all affect the final density.
Even factors like lift thickness or the distance between the asphalt plant and the paver can affect the outcome. While some factors, like haul distance or equipment availability are hard to change on the spot, roller timing and pattern should be adjusted in real time to match on-site conditions and ensure consistent results.

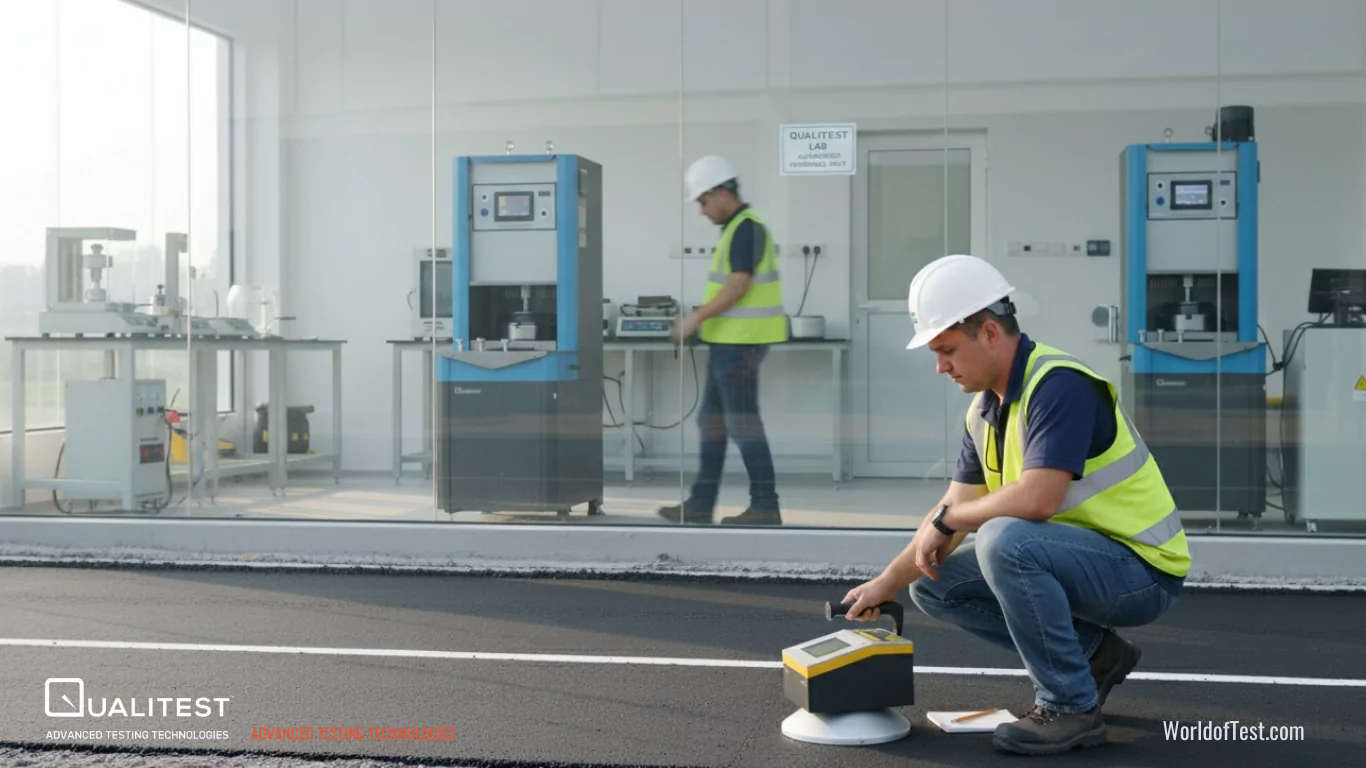

Field and Lab Testing to Monitor Compaction
Managing many factors affecting asphalt compaction requires accurate testing. Both field and lab testing serve specific purposes to ensure the compaction works as it’s needed.
Field Testing Equipment
- Nuclear Density Gauge (ASTM D6938)
Measures in-place density and moisture content using gamma radiation. Reliable for quick checks, though requires strict safety handling. - Non-Nuclear Density Gauge (Electrical Impedance or Dielectric)
Uses electromagnetic signals to estimate density. Safer to use and increasingly accepted as a nuclear alternative, though calibration is essential. - Core Sampling (ASTM D2726, D2041)
Involves extracting a physical sample from the pavement to determine bulk and maximum specific gravity. Highly accurate but invasive and time-consuming. - Infrared Thermometers and Thermal Profilers
Monitor surface temperature across the mat to ensure compaction is done within the effective temperature window. Especially important in cold climates or high-wind conditions.
Lab Testing Equipment
- Gyratory Compactor (ASTM D6925)
Simulates field compaction through vertical pressure and rotational shear, producing specimens for density and volumetric property analysis. Critical for Superpave designs. - Marshall Compactor (ASTM D6926)
Uses repetitive impact loading to compact specimens. Essential for Marshall mix design, often followed by stability and flow testing. - Asphalt Content Tester (Ignition Method – ASTM D6307)
Determines the exact asphalt binder content by burning off bitumen and weighing the remaining aggregate. Helps correlate binder amounts to compaction behavior. - Theoretical Maximum Specific Gravity Test (Rice Test – ASTM D2041)
Provides the maximum density a mix can achieve with zero air voids. Used alongside field/lab bulk specific gravity to calculate air voids and compaction levels.
Best Practices to Improve Compaction Quality
1. Compact Within the Right Temperature Window
- Aim to complete compaction before the mat cools below 90 - 100°C (194 - 212°F). Most compaction becomes ineffective under this range.
- Use infrared thermometers or thermal imaging systems to monitor surface temperature accurately across the entire mat.
- Consider ambient and ground temperatures. Cold weather, wind, or excessive delay can cause the mix to lose workability fast.
2. Choose and Sequence Rollers Wisely
- Use a vibratory roller (e.g., double-drum) for breakdown passes, followed by pneumatic rollers for intermediate compaction, and static rollers to finish.
- Match roller type and frequency to lift thickness and mix stiffness.
- Use accelerometers or onboard compaction monitoring systems when available to verify real-time roller performance.
3. Optimize the Mix Design Before Paving
- A mix with good aggregate gradation and angularity compacts more easily and resists rutting.
- Make sure binder grade (PG) suits the climate and traffic load.
- Use lab-based Marshall or Superpave compaction testing (with Marshall Compacting Hammer or Gyratory Compactor) to verify that the design supports field workability.
4. Minimize Haul Time and Prevent Cooling
- Long haul times reduce mix temperature and shorten your compaction window.
- Use insulated trucks and cover loads to maintain uniform temperature.
- Track haul distance and temperature loss using thermologgers or digital sensors in truck beds.
5. Monitor In-Field Density Actively
- Use Nuclear Density Gauges or Non-Nuclear Density Meters (like dielectric or electromagnetic testers) to measure compaction levels across the mat in real time.
- Take core samples regularly and test in the lab for Bulk Specific Gravity (AASHTO T 166) and Maximum Theoretical Specific Gravity (AASHTO T 209).
- These values help calculate air voids, Voids in Mineral Aggregate (VMA), and Voids Filled with Asphalt (VFA).
6. Train the Crew and Stay Responsive
- Operators should understand how roller speed, overlap, and frequency affect compaction results.
- Conduct pre-paving meetings to align the team on target densities, rolling patterns, and testing checkpoints.
- Adjust roller timing and placement dynamically based on test results and field conditions, especially when mix properties vary.
Final Thoughts
Understanding the factors affecting asphalt compaction involves comprehensive testing both in the lab or on the site. Once the property's quality is checked, you may see different results in its performance.
Using the right testing tools allows you to achieve this with minimum cost and minimum need to repair. Check Qualitest’s full range of asphalt testing solutions, from Marshall Compactors, Gyratory Compactors to asphalt content testers and density gauges.
Contact us to check the availability and get recommendations.
