Shipping components that fall outside tolerance isn't just a minor inconvenience; it is a liability that hits your bottom line hard. Here is the reality: grasping the functional differences of optical comparator vs vision measuring machine technology is the only way to stop burning capital.
We are Qualitest, and we aren't here to sell you equipment that gathers dust. We are here to provide the practical facts about which instrument will actually secure your production quality.
The Optical Comparator: The Shop Floor Standard
Let’s address the Optical Comparator first. Often referred to as a profile projector, this hardware has been the dependable foundation of machine shops for generations. When evaluating an optical comparator vs vision system for harsh environments, the comparator usually wins on durability alone.
Related article: What is an Optical Comparator? A Complete Guide
It isn't trying to be flashy. It projects a high-intensity beam through a lens system, casts a magnified silhouette on a glass screen, and you analyze it to see if it aligns with the overlay chart.
Why the industry still relies on it:
- It is remarkably intuitive: You don't need extensive software training to operate it. It is ideal for those immediate "pass/fail" evaluations.
- It is built to last: This equipment can operate for decades in an environment full of grinding dust and oil mist without failure.
The Wide View: You can view a significant section of the part simultaneously, providing instant visual confirmation.
Related article: How to Use an Optical Comparator: A Step-by-Step Guide
Our Perspective:
We will state this clearly: sometimes, the traditional methods remain the most effective. If you are standing next to a CNC lathe and just need to verify a turned shaft or a thread profile, you don't want a sensitive PC setup. You want our Digital Horizontal Profile Projector QPH-3015. It is the reliable utility vehicle of the metrology sector—rugged, capable, and ready for the dirty work.
The Vision Measuring Machine: The Digital Specialist
Then you have the Vision Measuring Machine (VMM). If the comparator is the heavy-duty tool, this unit is the precision instrument.
In the optical comparator vs vision measuring machine comparison, this is the contender delivering advanced capability. There are no fuzzy shadows here—just high-resolution cameras, sophisticated lighting arrays, and software that detects edges far more consistently than the human eye.
Why it is capturing attention:
- It manages the process: You program the inspection routine, and it executes the task while you handle other responsibilities. Models like our QualiVision Series minimize operator variation because even the most skilled inspectors experience fatigue.
- Exceptional Precision: It uses algorithms to identify contrast changes, detecting microscopic deviations that might escape a manual check. As researchers have noted, these systems employ image processing to perform automated defect detection on complex geometries with significantly faster throughput (Wang et al., 2017).
- It prioritizes data: It records every single measurement automatically. For those who dislike manually populating control charts, an automatic system like the AutoVision Series is a massive advantage.
Our Perspective:
This is for the precision-focused professional. If your operation depends on microns and statistical data, the VMM is your essential asset. For complex geometries and large production batches, the Micromea Series (with its multi-sensor capability) is the intelligent partner required for modern standards.

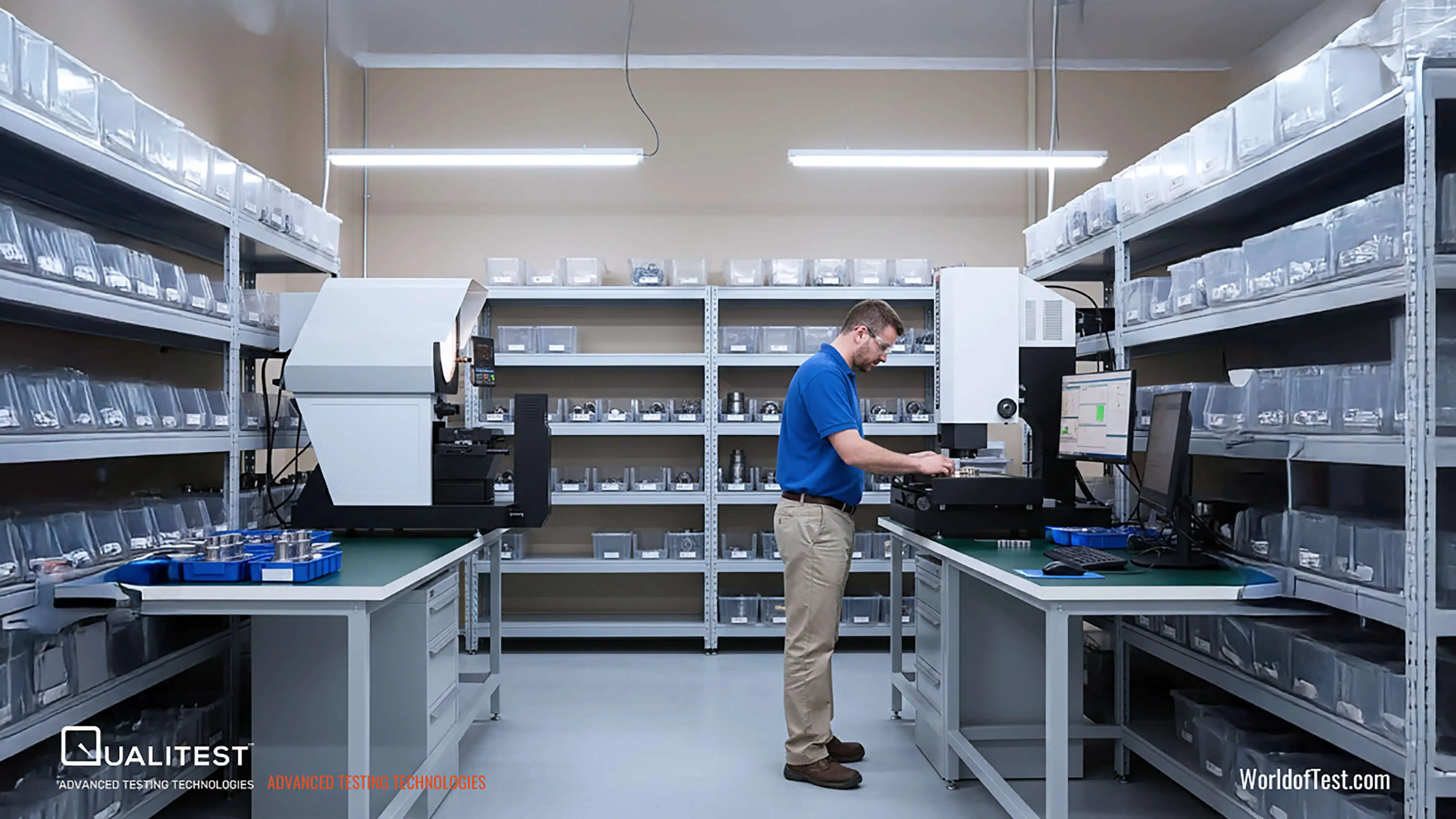

Optical Comparator vs Vision System: The Facts on Performance
Let’s strip away the marketing language and examine how these two systems perform in practice. This is the core of the optical comparator vs vision system discussion.
1. Accuracy: The Human Factor
On an Optical Comparator, you ultimately rely on an operator's judgment to align a shadow with a grid line. It is effective, but it remains subjective. This variability is the hidden cost of manual measurement—after a long shift, even the best machinist’s eyes can play tricks on them.
For example, if two operators measure the radius of a machined pin on a standard vertical projector like the QVP300, one might read it as 5.01mm and the other as 5.03mm, simply due to how they interpret the fuzzy edge of the shadow.
The Vision System changes this dynamic by utilizing calculated algorithms to locate edges based on contrast pixels. It doesn't have opinions; it simply reports the data. We have to admit, for strict repeatability where every micron counts, the VMM significantly outperforms manual inspection.
2. Speed: The Throughput Reality
The comparator is perfect for single-piece verification, but verifying twenty different dimensions on one complex part is a slow, labor-intensive process because you are physically cranking the stage handles for every single point.
However, once you configure the routine on a Vision System, the machine processes measurements with incredible velocity. You are essentially trading minutes of manual work for seconds of automated scanning.
Imagine inspecting a stamped bracket with 30 distinct holes. On a comparator, you must manually move the stage to each hole, align it, and read the digital readout.
With the Instant Vision Measuring Projector QIVS, the double-lens system captures the entire part and measures all locations within the field of view instantly.
3. The Z-Axis: The 3D Challenge
The Optical Comparator is primarily a 2D instrument; asking it to measure depth accurately is often impractical. A comparator relies on profile lighting that gets blocked by the part itself, leaving you staring at a dark void. If you need to verify the depth of a counterbore or a blind milled pocket, a comparator simply cannot see the bottom.
In contrast, a VMM is equipped with auto-focus capabilities and coaxial lighting that shines directly down into the part. This allows it to excel at measuring blind features. A QualiVision unit uses auto-focus to find the top surface and the bottom surface to determine that depth instantly, solving the 3D challenge without breaking a sweat.
Optical Comparator vs Vision Measuring Machine: The Breakdown
Here is the summary, concise and direct, so you can stop speculating and make an informed choice regarding the optical comparator vs vision measuring machine trade-offs.
| Feature | Optical Comparator | Vision Measuring Machine (VMM) |
|---|
| The Approach | Optical projection & mirrors | Digital sensors & smart software |
| Methodology | Visual alignment (Manual) | Algorithmic detection (Automated) |
| Velocity | A steady, manual pace | Extremely rapid (for batches) |
| Height Checks | Limited capability | High accuracy (Auto-focus) |
| Ideal Location | The active production floor | The controlled lab environment |
| Reporting | Manual logging required | Fully automated output |
| Best Application | Heavy components & quick checks | Intricate shapes & data requirements |
Who Actually Needs What? (A Realistic View)
Context is critical. The sector you operate in essentially dictates the winner of the optical comparator vs vision measuring machine choice.
- The Heavy Machining Sector (Auto & Aerospace): If you are manufacturing turbine components or steel shafts, the Optical Comparator is the logical choice. We typically recommend the Digital Horizontal Profile Projector QPH400-3015 here because machinists can handle larger, heavier samples easily. Efficiency matters when the machine is running.
- The Precision Electronics Sector: You cannot risk crushing a fragile circuit board with contact tools. A Vision Measuring Machine is mandatory here. For smaller budgets or manual checks, the iSemi Series works wonders, but for high-volume chip manufacturing, the AutoVision Series is the gold standard.
- The Medical Device Industry: If you are producing bone screws, you need a documentation trail that is audit-ready. The Micromea Series generates those reports automatically, preventing compliance challenges.
- The Flexible Parts Industry (Rubber & Gaskets): Have you ever tried to measure a soft O-ring? It distorts immediately. A VMM with superior lighting makes the edges stand out against the background, eliminating the guesswork.
- Heavy Duty VMM Needs: Sometimes you need VMM precision but on a massive part. That is where our MaxTouch Series comes in—it bridges the gap by handling the heavy loads usually reserved for comparators, but with VMM intelligence.
Related article: Choosing a Vertical vs Horizontal Optical Comparator
Solve Optical Comparator vs Vision System with Qualitest
The discussion regarding optical comparator vs vision system technology isn't about one being "better," but rather which one fits your specific operational reality.
If you require a rugged unit like the QPH or QVP Series that withstands the shop environment and provides immediate answers, the choice is clear. Conversely, if you are focused on data integrity, have substantial volume to verify, or need the automated speed of the AutoVision or QIVS lines, then a Vision Measuring Machine is the only logical path.
We aren't here to upsell you on features you will never utilize. We offer cost-effective equipment that actually performs. It is time to stop estimating and start verifying.
We invite you to examine our durable Optical Comparator options or review our sophisticated VMM Vision Measuring Machine lineup. Contact us today, and let’s determine the correct solution together so you can return to manufacturing exceptional products.
References:
Wang, W., Chen, S., Chen, L., & Chang, W. (2017). A Machine Vision Based Automatic Optical Inspection System for Measuring Drilling Quality of Printed Circuit Boards. IEEE Access, 5, 10817-10833. doi.org/10.1109/access.2016.2631658
