How do you guarantee your materials will deliver on their promise of quality and performance? The answer lies in accurate material testing, and the central tool for the job is the universal testing machine.
It comes in two main varieties: electromechanical and hydraulic.
Making the right choice is critical for your success, so we’re here to clarify the key differences in the electromechanical vs hydraulic tensile testers discussion.
The Bottom Line: Which Machine Fits Your Application?
Based on our experience outfitting countless labs and production facilities, we can usually identify the right fit pretty quickly.
Our recommendation is an electromechanical tester if:
- You're working with non-metal materials, like polymers, elastomers, or textiles.
- Your products are small-scale components or delicate items, such as medical equipment or electronics, where accuracy is paramount.
- You need to run complex test sequences that require changes in speed or cyclical patterns.
- Your machine will operate in a controlled lab environment where excessive noise or hydraulic fluid is not ideal.
- You depend on deep data analysis. The software integration on these machines is a substantial benefit for quality control and R&D.
We're confident a hydraulic tester is the solution if:
- You are primarily testing high-strength metals, alloys, and heavy-duty construction materials.
- Your tests are straightforward—mostly pulling or compressing a sample until it fails, without needing complex cycles.
- The machine will be placed in a demanding industrial or production environment.
- Your main priority is achieving the highest force capacity in the most cost-effective way. For sheer strength, their value is hard to beat.
A Head-to-Head Comparison
| The Gist | The Electromechanical Machine | The Hydraulic Machine |
|---|
| How it Works | Uses a highly controllable, screw-driven electric motor. | Generates force using a high-pressure hydraulic system. |
| Force Capacity | Ideal for lower to medium-force applications needing finesse. | Delivers immense force for high-strength jobs. |
| Performance | Delivers exceptional precision for detailed, complex tests. | Provides all the accuracy needed for high-capacity testing. |
| Commonly Used For | Plastics, textiles, medical parts, electronics. | Rebar, steel plates, automotive frames, aerospace parts. |
| Investment | Can be a higher initial cost for lower-force systems. | Gives you more force-per-dollar at the high end. |
Real-World Applications: Examples in Action
To make this clearer, here are some typical tests performed on each machine.
Electromechanical Tester Applications:
- Medical & Biomedical: Testing the tensile strength of a suture, the force to activate a syringe plunger, or the flexural properties of a bone implant.
- Electronics: Confirming the pull-off force of a soldered component on a circuit board or the durability of a charging cable through repeated bending.
- Packaging: Measuring the peel strength of a flexible package lid or the compressive strength of a cardboard box to test its stacking ability.
- Textiles & Adhesives: Determining the seam strength of a garment, the tear resistance of an industrial fabric, or the bond strength of an industrial glue.
- Plastics & Polymers: Evaluating the tensile and flexural strength of a molded plastic part that will be used in a consumer product.
Hydraulic Tester Applications:
- Construction & Civil Engineering: Verifying that steel rebar meets its specified tensile strength or performing compression tests on concrete cylinders to confirm their PSI rating.
- Automotive & Mechanical: Performing high-force tests on a car's frame welds, the tensile strength of high-performance bolts, or the fatigue life of a suspension component.
- Aerospace: Testing the sheer strength of fasteners, the tensile properties of titanium and aluminum alloys, or the strength of composite wing materials.
- Primary Metals Industry: Certifying the mechanical properties (yield strength, elongation) of a steel or aluminum sample directly from the mill before it is shipped.
- Heavy Industry: Confirming the breaking force of industrial chains, wire ropes used in cranes, or the pull-out strength of large rock bolts used in mining.

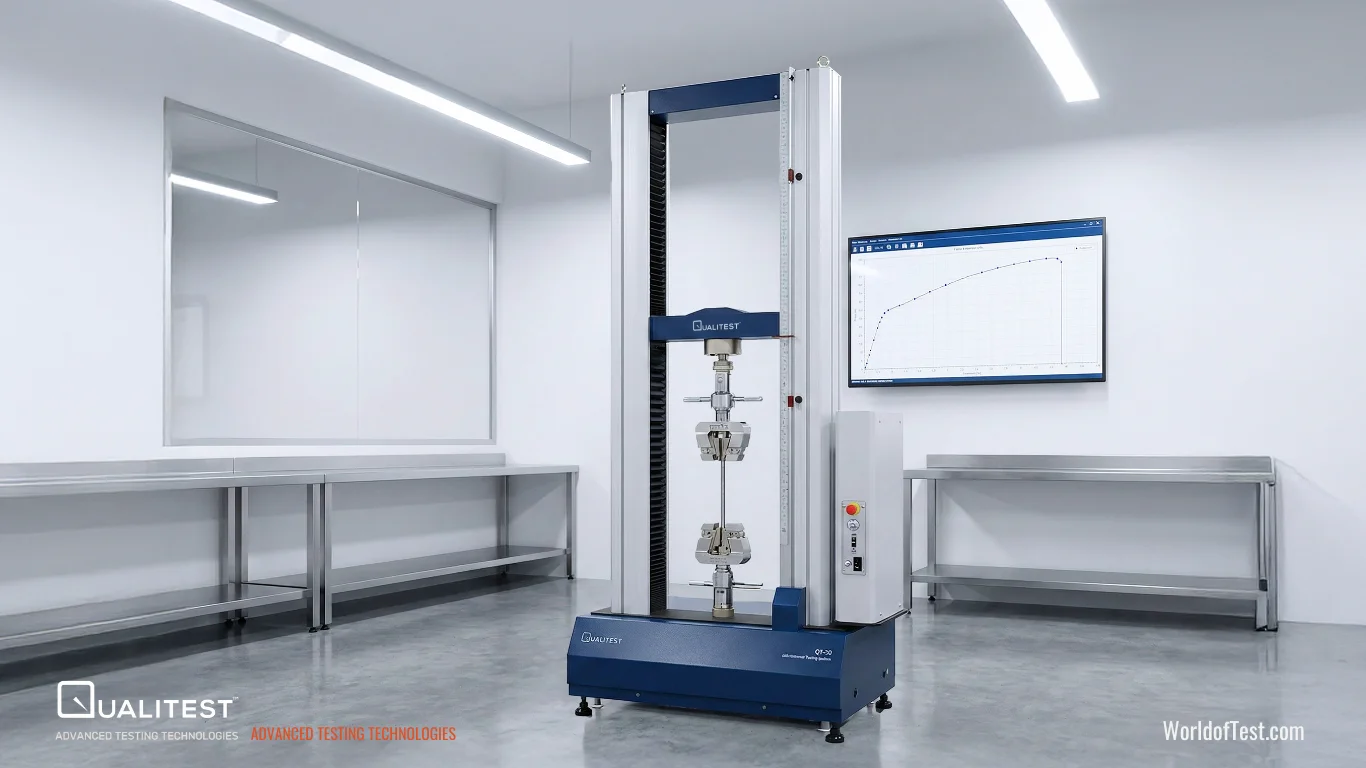

A Closer Look at the Precision Machine: Electromechanical Testers
If the first category sounded like you, let's explore the details. As defined in recent studies, electromechanical tensile testers use electric motors and sensors to apply and measure tensile forces on materials (Homon et al., 2021).
This mechanism often integrates computerized control and data acquisition systems for precise, automated testing. Because of this, they are favored for their precision, programmability, and suitability for dynamic and high-temperature testing (Ghadhban et al., 2021).
Its key benefit lies in its remarkable versatility. For instance, our QM-Series is often the top contender for reliable testing on composites and rigid plastics because it has the sensitivity for delicate samples while still being capable of handling medium-strength materials. Recent research highlights applications such as evaluating soft and stretchable conductive materials for soft robotics and sensors, with some developments even focusing on cost-effective setups to boost accessibility in research (Wiranata et al., 2022; Wiranata et al., 2024).
If you are working with lower forces or have limited lab space, our benchtop QTens-Series or the cost-effective single-column QE-Series might be the perfect fit. Overall, electromechanical testers are preferred for detailed, controlled testing of advanced materials (Homon et al., 2021).
Meet the High-Force Workhorse: Hydraulic Testers
When your application requires serious power to get the job done, this is the machine you turn to. Hydraulic tensile testers use hydraulic fluid pressure to generate force (Homon et al., 2021). This typically allows for higher load capacities and a wide range of test speeds, making them suitable for testing various materials including high-strength and building materials.
The core design is centered on producing the high force needed to test the world's strongest materials to their breaking point. This is where our QT-HW2 Series shines, providing the muscle needed for standard high-strength testing. For the absolute extreme end of the spectrum, heavy-duty models like the QTM-Series are the industry standard.
These systems are widely used in industry for quality control and research on structural materials like wood and metals, benefiting from their large load capacity and compliance with international standards (Bao et al., 2024). They excel in handling very high loads and offer flexibility in speed and stroke length (Homon et al., 2021; Ghadhban et al., 2021).
We have confidence in their durability even in tough production facilities where they might test materials like large-diameter pipeline welds. Ultimately, hydraulic testers are chosen for heavy-duty applications requiring high force and versatility (Zeng et al., 2020).
What If You're Stuck in the Middle?
Sometimes, an application isn't so clear-cut. You might be testing a high-strength composite or a unique alloy where either machine could theoretically manage the force requirements.
In these cases, the best choice often comes down to secondary needs. Is the advanced data-logging of an electromechanical system more valuable to your process? Or is the sheer durability of a hydraulic machine a better match for your facility's environment?
This is where a direct consultation can clarify the best path forward.
Qualitest: Your Partner in Material Testing
We know that choosing a universal testing machine is a significant capital investment.
Our approach is to function as a partner, ensuring you get the right equipment for your specific job—not just a machine from a catalog. We specialize in providing high-quality, cost-effective testing solutions. Whether your work demands the fine control of an electromechanical QM-Series or the immense power of a hydraulic QT-HW2, our team is here to help you evaluate the electromechanical vs hydraulic testers choice for your budget and application.
Contact our team today to schedule a consultation with our engineers. We can discuss your unique testing needs and help you select a machine that will serve your operations reliably for years to come.
References
- Bao, J., Ding, H., Zuo, Z., & Peng, J. (2024). Exploring Mechanical Properties Using the Hydraulic Bulge Test and Uniaxial Tensile Test with Micro-Samples for Metals. Metals.
- Ghadhban, T., Al-Alkawi, H., & Reja, A. (2021). Design, Fabrication, and Testing of an Electromechanical High-Temperature Tensile Test Machine. Engineering and Technology Journal.
- Homon, S., Dovbenko, T., Matviiuk, O., Vereshko, O., Kulakovskyi, L., & Chornomaz, N. (2021). ANALYSIS OF TEST EQUIPMENT FOR INVESTIGATION OF MATERIALS UNDER A STRONG LOAD APPLICATION. Urban development and spatial planning.
- Wiranata, A., Ohsugi, Y., Minaminosono, A., Kuwajima, Y., & Maeda, S. (2022). Electromechanical tensile test equipment for stretchable conductive materials. HardwareX, 11.
- Wiranata, A., Premiaji, W., Kartika, W., Febrinawarta, B., Mao, Z., Ariyadi, H., Aisyah, N., Putra, R., Mangunkusumo, K., & Muflikhun, M. (2024). Economically viable electromechanical tensile testing equipment for stretchable sensor assessment. HardwareX, 19.
- Zeng, X., Huo, J., Wang, H., Wang, Z., & Elchalakani, M. (2020). Dynamic Tensile Behavior of Steel HRB500E Reinforcing Bar at Low, Medium, and High Strain Rates. Materials, 13.
