Getting data that is satisfyingly accurate isn't just about pulling a sample until it fails; it is entirely about how you apply that tension. One of the most absolutely essential variables in mechanical testing is the strain rate.
For the dedicated engineers out there, the strain rate calculation is the key to predicting correctly how materials act when subjected to real-world forces. In this guide, we break down the strain rate formula, examine the strict ASTM tensile test strain rate standards, and share our professional perspective on how to ensure your testing data remains indisputable.
Key Takeaways
- Speed Changes Everything: Strain rate describes exactly how fast a material deforms over time. We have seen that varying this speed can drastically alter your yield strength results, making consistency absolutely vital for accurate data.
- The Math Matters: The basic strain rate calculation involves dividing the deformation velocity by the initial gauge length (v/L0). While knowing this formula is necessary, we find that relying on it manually is often insufficient for high-precision applications.
- Don't Trust Crosshead Speed: The speed you set on the machine is rarely the speed the specimen actually feels due to machine compliance. We strongly advise using an extensometer to bridge this gap and achieve true closed-loop control.
- High Speed is the New Standard: Quasi-static testing is no longer enough for modern safety analysis. Industries like automotive and defense now depend on high strain rate tensile testing to simulate real-world crashes and impacts.
- Equipment is Key: Strict adherence to ASTM standards requires machinery with impeccable speed control. Our range of Universal Testing Machines, from the QM-Series to the massive QTM-3000, is engineered to deliver this exact precision.

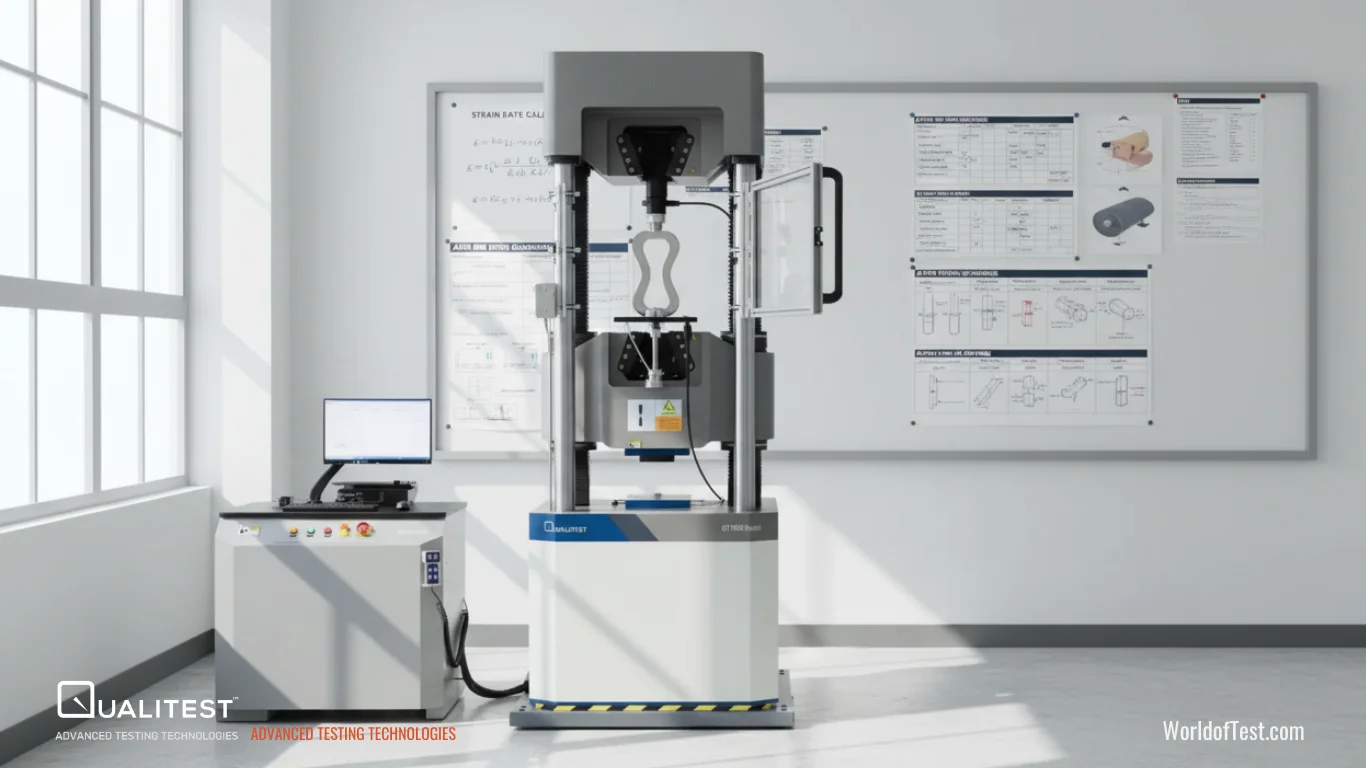

So, What Exactly is Strain Rate?
In the clearest terms, strain rate describes exactly how quickly a material deforms. It is the specific change in strain (deformation) happening over a period of time, typically expressed in s⁻¹.
While it might look like a static figure on a spreadsheet, plenty of materials are "strain-rate sensitive." We always remind our clients that if you alter the speed, you are effectively characterizing a different material behavior. Different strain rates can reveal rate-dependent mechanical properties such as strength and ductility (Zhang et al., 2019; Harant et al., 2024; Baciu et al., 2020).
Consider the polymers used in a vehicle dashboard. Under the slow heat of a summer day (low strain rate), that material needs to expand and behave almost like a viscous fluid. However, during a collision (which requires high strain rate tensile testing), that exact same material needs to absorb energy without turning into dangerous shrapnel.
If you are validating that polymer on a compact machine like our QE-Series, you can see these differences immediately. At low speeds, the curve is smooth and yielding; at high speeds, it spikes. If you test that polymer at a single, arbitrary speed, you are effectively guessing at its safety.
The Math: Strain Rate Formula and Calculation
To keep your lab results consistent and defensible, you simply must get comfortable with the underlying math before you configure the software. While modern systems handle the heavy processing, we insist that every technician should grasp the manual strain rate calculation to identify any irregularities.
The standard strain rate formula is expressed as:
ε̇ = v / L0
Where:
- ε̇ (Epsilon dot): Strain rate (usually noted in s⁻¹ or min⁻¹)
- v: The velocity of the deformation (e.g., mm/min)
- L0: The initial gauge length of the specimen (e.g., mm)
Example of Strain Rate Calculation
Let’s imagine you are testing a standard metal dog-bone specimen.
- Your gauge length (L0) is 50 mm.
- You set your Universal Testing Machine (UTM) speed (v) to 5 mm/min.
Your strain rate calculation would appear exactly like this:
ε̇ = 5 mm/min / 50 mm = 0.1 min⁻¹
To convert this to seconds (s⁻¹):
0.1 / 60 = 0.00167 s⁻¹
Knowing how to calculate strain rate in tensile test situations manually is useful for verification, but as we are about to discuss in the next section, we find that simply inputting the machine speed based on this strain rate formula is rarely sufficient for high-precision applications.
Crosshead Speed vs. True Strain Rate: The Hidden Variable
We need to address a frequent oversight. The speed you input into the software (mm/min) is not the same as the strain rate the specimen actually endures. Seasoned lab managers know exactly what we are referring to. In our experience, they are almost never identical.
Crosshead speed is often used to control strain rate, but it does not always correspond directly to the true strain rate experienced by the specimen; true strain rate is more accurately measured using strain gauges or optical methods like digital image correlation (DIC) (Naumann, 2024; Xia et al., 2015).
Due to "machine compliance" (that unavoidable tendency for the load frame, the heavy grips, and the fixtures to stretch slightly under load), the speed you set is not the speed the specimen experiences within its gauge length.
This is exactly why we engineered our QM-Series Universal Testing Machines with exceptionally rigid frames. While no machine is perfectly rigid, using a robust electromechanical system like the QM-Series or the precise QTens-Series significantly minimizes these compliance errors compared to flimsier alternatives.
However, we still strongly advise against relying on open-loop crosshead control for critical data.
The Critical Role of Extensometers
To achieve that incredibly precise closed-loop control, where the machine regulates its own speed in real-time, we consider utilizing an extensometer absolutely essential.
We won't elaborate excessively here, but attaching a clip-on or video extensometer bridges the gap between estimated figures and the actual data, ensuring your strain rate calculation reflects reality.
Common Mistakes in Strain Rate Calculation
Even experienced engineers can encounter these pitfalls. We see these errors frequently in the field, and avoiding them is the only way to maintain strict compliance when learning how to calculate strain rate in tensile test scenarios:
- Confusing Parallel Length with Gauge Length: The formula requires L0 (the specific gauge length), not the entire length of the reduced section.
- Mismanaging the Units: Mixing minutes and seconds is the most frequent cause of calculation errors. We recommend you standardize your units before applying them to the strain rate formula.
- Disregarding System Compliance: As we mentioned above, common mistakes in strain rate calculation include assuming crosshead speed equals strain rate without accounting for specimen deformation or machine compliance, leading to inaccurate material characterization (Naumann, 2024).
Dealing with Standards: ASTM Tensile Test Strain Rate
If you are a supplier or manufacturer, you are likely adhering to regulations like ASTM E8/E8M (for metals) or ASTM D638 (for plastics). We have noticed that the ASTM tensile test strain rate requirements are becoming increasingly specific regarding closed-loop control.
Generally, the protocols differ depending on the stage of the test:
- Elastic Region: The test usually demands a deliberately slow strain rate to capture the Modulus of Elasticity and Yield Point perfectly.
- Plastic Region: Once the material yields, the speed is often increased to expedite the fracture process.
Modern testing machines must be capable of incredibly precise speed control to maintain the specific ASTM tensile test strain rate throughout the procedure. We honestly believe that if your machine lacks the intelligence to automatically adjust the motor speed as the material stiffens, you are missing the mark on accuracy.
Going Faster: High Strain Rate Tensile Testing
Standard testing is sufficient for quasi-static conditions, but typical speeds are inadequate for modern R&D. We are observing a significant shift where high strain rate tensile testing (often exceeding 1 s⁻¹ to 1000 s⁻¹) is the expected norm.
Think about the seatbelt in your family car. In normal use, the webbing pulls out smoothly. But during a crash, it has to lock and endure a massive load in a fraction of a second. Testing that webbing at a standard 50 mm/min is completely pointless because the material stiffens up dramatically under shock. The same logic applies to dropping a smartphone; the solder joints inside experience a strain rate that a standard machine simply cannot replicate.
This is where the standard electromechanical frames bow out. For these high-force applications requiring high strain rate tensile testing, you need the hydraulic muscle of our QT-HW2 Series or, for extreme loads, the massive QTM-3000. These systems are built to deliver the rapid acceleration required to capture data during that split-second impact event.
High strain rate tensile testing is essential for understanding material behavior under dynamic loading conditions, revealing phenomena like strain rate sensitivity and changes in failure modes (Noh et al., 2024; Zhang et al., 2019; Mukherjee, 2025; Agirre et al., 2023). This type of rapid data is vital for:
- Automotive Safety: Simulating crash impacts on chassis metals.
- Composites & Additive Manufacturing: Understanding how 3D printed layers or carbon fiber weaves separate under sudden shock.
- Defense: Analyzing ballistics and protective armor materials.
Performing these tests requires specialized equipment capable of rapid acceleration and high-frequency data capture. We view this as the new frontier of material testing, where only the most capable systems can perform effectively.
Get Precise with Qualitest
At Qualitest, we know that obtaining figures that are satisfyingly spot-on is what drives product safety and innovation. We know that whether you are performing a basic strain rate calculation for a routine quality check or conducting a comprehensive research project, the reliability of your Universal Testing Machine (UTM) is paramount.
Accurate strain rate control and measurement improve the reliability of mechanical property data, which is crucial for applications in aerospace, automotive, and structural engineering (Dear et al., 2025; Xia et al., 2015; Naumann, 2024).
We offer a comprehensive portfolio of cost-effective testing solutions designed to meet these rigorous global regulations, including every ASTM tensile test strain rate specification. Our machines provide the impeccably precise speed control and high-resolution data acquisition needed to handle everything from slow-speed ASTM adherence to dynamic applications.
Explore our range of Universal Testing Machines today!
