Drilling into concrete without a clear picture of the embedded steel is a significant and unnecessary risk.
This guide provides a clear rebar locator definition and explains how a rebar locator works so your team can move past the outdated "drill-and-pray" approach.
In our years supplying equipment to this industry, we've seen how a single, blind drill point can cascade into project delays and budget overruns. This is precisely where an essential piece of equipment, the rebar locator, proves its worth by shifting your team's process from reactive to proactive.
What is a Rebar Locator? A Clear Definition
The simplest way to describe this device is as a specialized concrete rebar scanner, built for one primary purpose: detection. It’s a concrete non-destructive instrument, meaning you can accurately map the hidden grid of steel reinforcement bars (rebar) without a single hammer swing or test core.
Any contractor who has felt a core drill grind to a halt on hidden steel knows the frustration and cost involved. A quality rebar locator eliminates that variable entirely. It provides clear, precise data not just on where the steel is, but also its orientation and how much concrete cover protects it, allowing you to make fully informed decisions on site.
How a Rebar Locator Works
So how does this rebar scanning technology accomplish its task with such precision?
The device operates by generating a controlled magnetic field from its probe. When that field interacts with steel rebar, the metal's presence alters the field's characteristics. The locator's internal sensors detect this change with a high degree of sensitivity and translate that raw data into actionable information on the screen.
While the technology is sophisticated, the output is designed to be straightforward. Most units provide a clear visual guide, audio signals, and digital readouts of depth, making the process of locating rebar fast and intuitive.

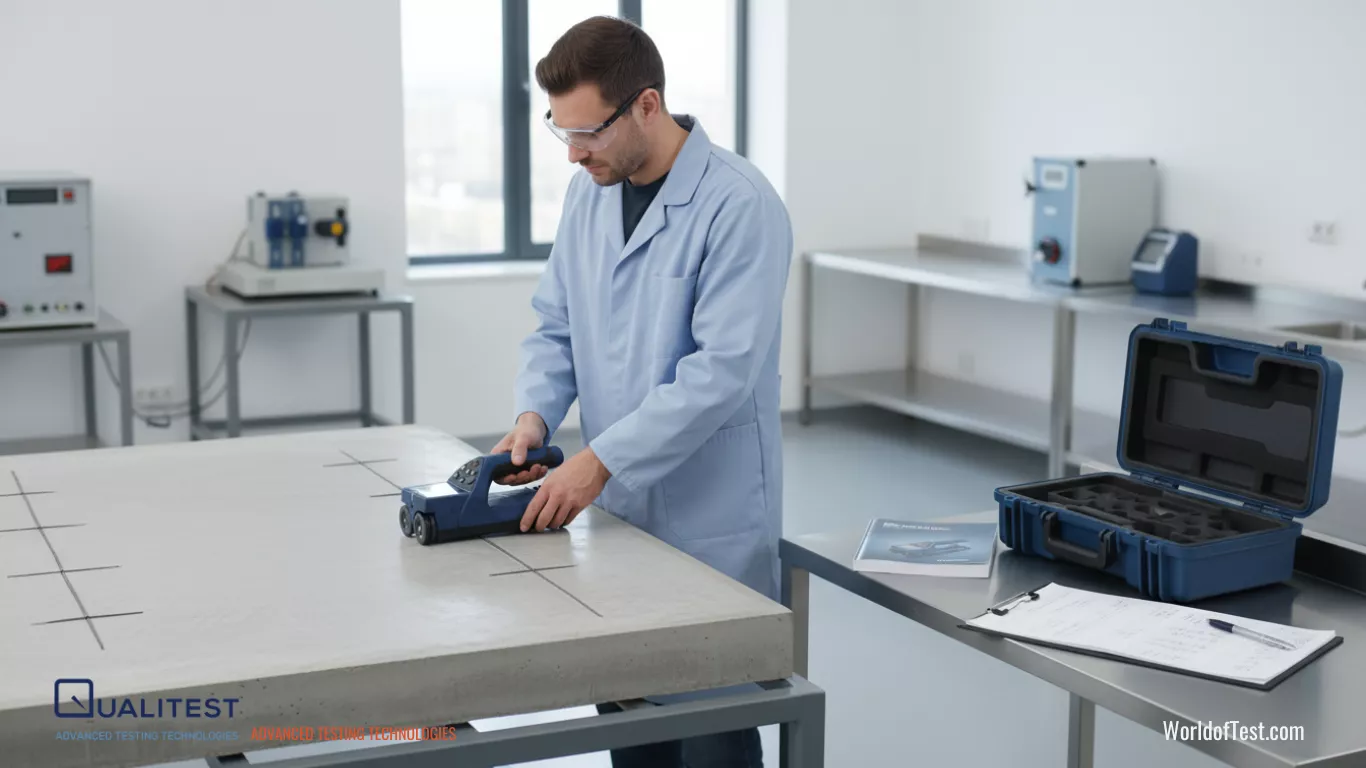

Key Applications for a Concrete Rebar Scanner
This is where the theory meets the job site. We see our clients use these rebar locators in critical situations every day, turning potential problems into manageable tasks.
Quality Assurance on New Construction
This involves verifying that the as-built reinforcement matches the structural engineer's original design specifications for correct rebar placement.
Example: An engineering firm on a new bridge deck project uses a Rebar Locator QualiRL-II for detecting rebar placement. They can quickly verify that the steel is at the specified 3-inch depth, ensuring compliance before a massive concrete pour.
Structural Analysis for Renovations
Before cutting into or modifying an existing concrete structure, it's critical to map the hidden reinforcement to ensure the changes won't compromise structural integrity.
Example: A contractor is tasked with cutting a large opening in a warehouse wall. Before starting, they use a rebar locator to map the entire rebar grid. This map allows them to plan their cuts to avoid compromising critical load-bearing bars.
Preventing Damage During Coring and Drilling
This is arguably the most common and immediate use-case, focused on avoiding costly and dangerous hits when locating rebar before penetrations.
Example: An electrical crew needs to drill ten 4-inch cores through a suspended slab. A quick scan with a Rebar Locator QualiRL-I identifies the safe drilling zones, preventing costly diamond bit damage and saving hours of potential downtime.
Assessing Concrete Health and Durability
The thickness of the concrete cover is a primary factor in protecting rebar from corrosion, and a rebar locator can precisely measure it for diagnostic purposes.
Example: During a structural inspection of an aging parking garage, an engineer uses the Rebar Locator QualiRL-II to measure the concrete cover. Finding that the cover is dangerously thin in several areas indicates a high risk of corrosion.
Proper Usage for Accurately Locating Rebar
Getting reliable data from your rebar locator hinges on proper technique. For the best results, we always advise a systematic approach.
Moving the probe smoothly across the surface prevents false readings. For a full assessment, scanning in a grid pattern is the key to creating a complete map of the underlying reinforcement.
Read more: The Expert's Guide to Finding Rebar in Concrete Fast
Understanding the Limitations of a Rebar Locator
Let's be clear about what these instruments are designed for. They are exceptionally good at their primary job, but there are situations where detecting rebar can be challenging. The two main challenges are extremely congested rebar and targets beyond maximum scanning depth. Knowing these boundaries is key to interpreting the data correctly.
Example: Imagine scanning the base of a heavily reinforced column. In this congested scenario, the rebar locator might indicate a single, large metallic mass rather than resolving each individual bar. Similarly, rebar buried deep in a thick foundation may be beyond the detection range.
Choosing the Right Rebar Locator for Your Needs
Selecting the right locator means matching the tool's capabilities to your common job site demands. Key considerations are the required detection depth and whether data storage is necessary.
For general tasks, a durable unit like the QualiRL-I is an ideal rebar locator, while complex analysis might call for the advanced capabilities of the QualiRL-II.
Read more: How to Choose a Rebar Locator: A Pro Guide
Trust Qualitest for Accurate Rebar Locators
Guesswork has no place in a professional construction environment.
At Qualitest, we supply the reliable, field-proven equipment you need to operate with full confidence. Our cost-effective rebar locators are built for accuracy and straightforward operation, helping you meet specifications while avoiding expensive setbacks.
Ready to integrate this capability into your workflow? Explore our Rebar Locator QualiRL-I and QualiRL-II on the product page or contact our technical team today.
