Is your current quality control equipment giving you the confidence and precision you need to prevent costly errors?
In precision manufacturing, your ability to accurately measure every component is the foundation of your success. Avoiding rework and scrap starts with the right tools.
Quality managers consistently ask: what truly distinguishes a vertical from a horizontal optical comparator, and how do I select the configuration that will maximize our shop floor efficiency?
We have witnessed too many facilities allocate excessive budgets toward equipment they do not require. Let’s examine the functional distinctions and share our unfiltered professional perspective so you can acquire an optical comparator that truly aligns with your shop floor reality.
Examining the Fundamental Mechanics
To understand the choice, we must look at how these machines operate.
A Vertical Optical Comparator (Profile Projector) is a measurement device where the workpiece is placed on a horizontal stage, and the optical system projects the magnified profile of the object vertically onto a screen for inspection.
In contrast, a Horizontal Optical Comparator positions the workpiece vertically, projecting its profile horizontally onto the screen.
The main difference lies in the orientation of the workpiece and the projection direction, which affects ease of use depending on the shape and size of the object being measured.
Vertical comparators are often preferred for flat or small parts that can be easily placed on a horizontal stage, while horizontal comparators are better suited for longer or heavier parts that can be mounted vertically. The choice between vertical and horizontal optical comparators depends on the specific application, workpiece geometry, and ergonomic considerations.
Although the provided research does not directly discuss these industrial devices, the distinction between vertical and horizontal orientations is a common theme in optical measurement and imaging technologies (Fan et al., 2023; Ouchi, 2025; Tañá-Rivero et al., 2021).
The Vertical Optical Comparator
In this configuration, the illumination source is situated beneath the staging area. It projects the beam upward through a glass plate, past the component, and into the lens system suspended overhead.
Best For:
Components that sit naturally flat, such as flexible gaskets, O-rings, stamped metal fabrication, or delicate printed circuit boards (PCBs). Because gravity acts as your most reliable fixture, you can simply place the item on the glass surface and complete the inspection. This gravity-friendly design is the core logic behind our Digital Vertical Profile Projectors (QVP300 / QVP400), which are engineered specifically for these rapid place-and-measure workflows.
Our Professional View:
We firmly believe the vertical configuration is the undervalued champion of operational efficiency. For facilities processing high volumes of small, flat items, the sheer velocity of placing a part down on a QVP300 versus manipulating clamps is a significant efficiency boost that many buyers fail to appreciate.
The Horizontal Optical Comparator
Here, the light travels laterally across the stage. The optical lenses and illumination source are mounted to the side to create a silhouette from a profile view.
Best For:
The substantial, cylindrical, and heavy components like machined shafts, threaded screws, and dense castings. These units utilize a rigid metal stage equipped with T-slots or dovetails to mimic a machine tool setup. This allows you to mount centers or clamps to secure parts that cannot stand unsupported. This structural necessity is built into our Digital Horizontal Profile Projectors (QPH350-2010 / QPH400-3015).
Our Professional View:
We regard the horizontal comparator as the unshakeable powerhouse of heavy industry. While it demands a higher degree of operator skill to arrange fixtures, its structural rigidity is undeniable. If your manufacturing environment experiences vibration or you handle significant metallic weight, a unit like the QPH350-2010 is the configuration you require.
Vertical vs Horizontal Optical Comparator: A Direct Comparison
To provide a clear perspective without unnecessary complexity, here is how the configurations compare against one another in key operational areas:
| Feature | Vertical Optical Comparator | Horizontal Optical Comparator |
|---|
| Light Path Trajectory | Projects Upward (through the stage) | Travels Laterally (across the stage) |
| Stage Composition | Glass (transparent surface) | Metal (solid, slotted construction) |
| Component Orientation | Resting flat on the glass | Clamped, fixtured, or between centers |
| Ideal Workpiece Profile | Flexible, flat, slender (Gaskets, PCBs) | Heavy, cylindrical, turned (Shafts, Screws) |
| Weight Load Tolerance | Light to Moderate | Heavy Industrial Duty |
| Preparation Interval | Instantaneous (place and measure) | Moderate (requires fixturing) |

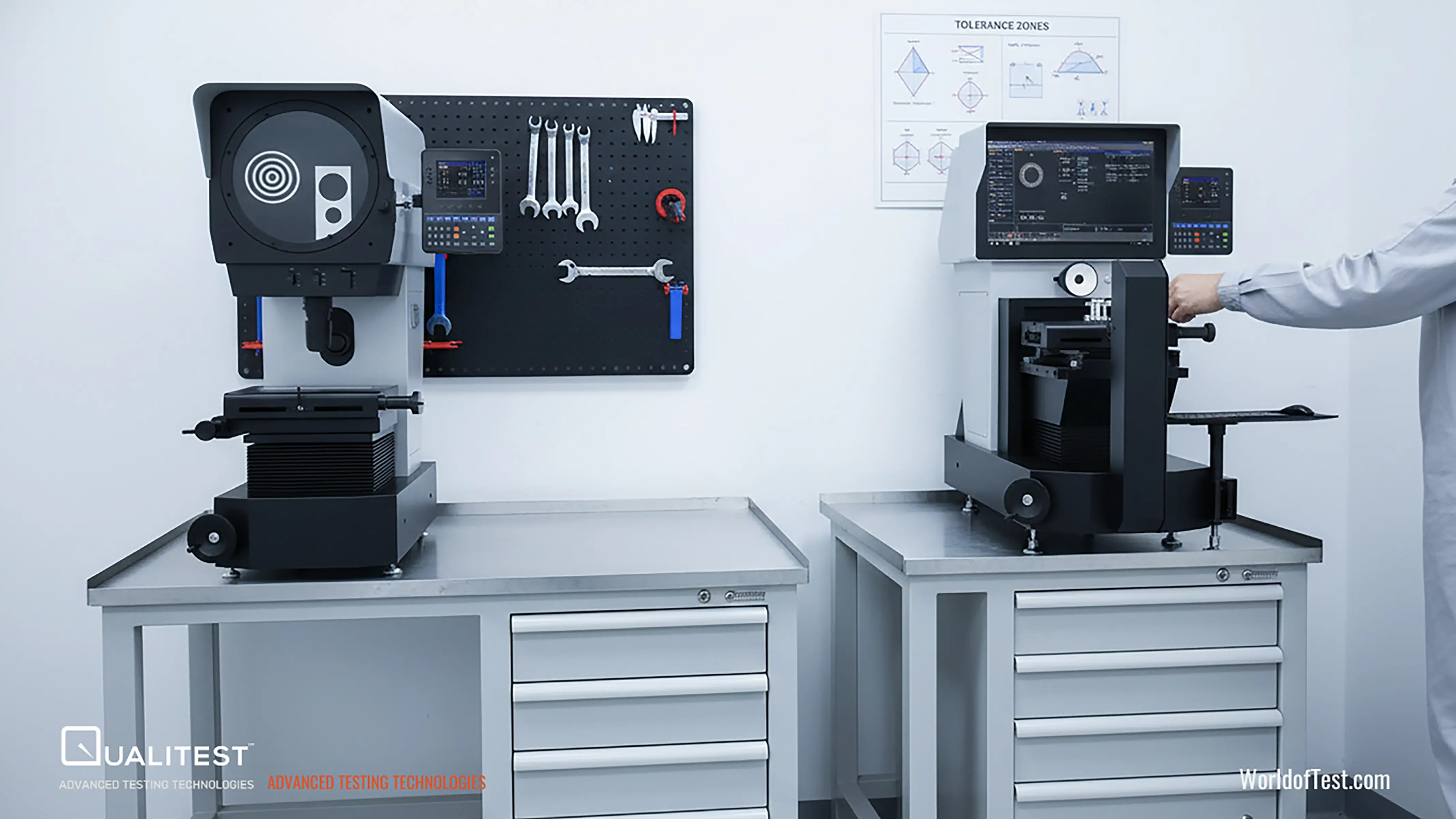

The Decision Matrix: Choosing a Vertical vs Horizontal Optical Comparator
When navigating the selection process, the physical geometry of your part is the primary dictator. However, to ensure a prudent financial investment, you must evaluate these three operational realities.
1. Load Bearing Capacity
The fundamental architecture determines weight limits. Horizontal comparators are the structural heavyweights. Metal stages like those on our larger QPH400-3015 traverse on heavy-duty linear guides designed to resist deflection under load. Conversely, a vertical system relies on a glass plate suspended over a light source. This physically limits the mass it can support without risking breakage or measurement error.
Real-World Context: In our experience, attempting to place a 20kg steel crankshaft on a vertical glass stage is the most efficient method to fracture the glass and disrupt your calibration. A horizontal metal stage supports that weight without a shudder.
2. Throughput Velocity
This is the battle between gravity and mechanics. For flat components, vertical models are vastly superior because the fixturing is instantaneous since gravity does the work. Horizontal machines require an operator to physically mount, secure, and align every single piece. This introduces a massive bottleneck if your volume is high.
Real-World Context: Consider a batch of 500 stamped washers. On a QVP300, an operator can scatter them on the glass and finish the batch in minutes. On a horizontal unit, the clamping process alone for each individual washer would consume your entire morning.
3. Operational Versatility
Horizontal models are often viewed as the multi-purpose tool for machine shops because they mimic the setup of a lathe. While they require more time to set up, the ability to swap between V-blocks, rotary centers, and vices allows them to accommodate virtually any irregular shape.
Real-World Context: If you need to check the runout on a drill bit today and the profile of a flat gear tomorrow, a QPH-3015 Horizontal Video Projector wins because of that adaptability. But we must clarify that versatility invariably demands a sacrifice in speed. If your production consists solely of flat gaskets, do not purchase a horizontal machine simply for hypothetical scenarios.
Related article: How to Use an Optical Comparator: A Step-by-Step Guide
Industry-Specific Recommendations
The vertical vs horizontal optical comparator choice is often predetermined by your specific manufacturing sector. Based on our history supplying facilities globally, here is our direct advice.
Aerospace & Automotive Components
We are going to be blunt. You require a Horizontal Optical Comparator. Your facility manages massive turbine blades, heavy transmission shafts, and dense castings. The solid metal stages on these horizontal models can support that substantial mass without deflection.
Why: Verifying the root geometry of a heavy turbine blade requires a stage that will not deflect under load. This is something a glass plate simply cannot guarantee. In our view, relying on a vertical machine in a heavy automotive plant is a liability you should not accept.
Fastener Production (Screws & Bolts)
The definitive choice here is the Horizontal Optical Comparator. To accurately verify thread pitch, root radius, and helix angles, the component must be secured horizontally between centers or on V-blocks.
Why: Accurately checking the flank angle on an M12 bolt requires the specific lateral view that only a horizontal alignment provides. We maintain that a horizontal light path is essential for projecting the true profile of a thread.
Electronics & Medical Technology
For high-precision sectors, the Vertical Optical Comparator is the industry standard. PCBs, flexible circuitry, and medical stents are incredibly fragile. A vertical system allows these items to be measured simply by resting them on the glass stage.
Why: Consider a flexible circuit board. Trying to fixture this vertically would cause it to sag, giving you false dimensions. Lying flat on a vertical stage, it remains perfectly true and stress-free.
Metal Stamping & Fabrication
If you are manufacturing washers, clips, gears, and shims, the Vertical Optical Comparator is your greatest asset. Velocity is the priority here. Since stamped parts are inherently flat, a vertical system eliminates setup time entirely.
Why: Imagine inspecting a batch of 20mm shims. You can inspect multiple parts simultaneously on the wider glass stage. A horizontal setup forces you to mount them one by one. We have observed production lines double their inspection throughput simply by transitioning to vertical units.
Tool & Die Manufacturing
We recommend a Horizontal Optical Comparator for tool makers. Inspecting drill bits, end mills, and hobs requires the ability to rotate the tool to check for runout and wear patterns.
Why: You cannot accurately measure the helical flute of an end mill without rotating it between centers. This movement is native to horizontal metal stages but nearly impossible on a vertical glass plate.
Plastic Injection Molding
For this industry, the Vertical Optical Comparator is typically preferred. Rubber seals, O-rings, and plastic connectors are pliable and resist fixturing.
Why: Attempting to clamp a soft silicone O-ring in a horizontal fixture will inevitably ovalize it. This yields a rejected part that was actually perfect. Placing them flat on the glass stage is the most intelligent method to check for variance without distortion.
Achieving Cost-Effective Precision with Qualitest
We are going to state this plainly. Paying a premium solely for a legacy brand name is an unnecessary expenditure. We see numerous competitors inflating prices based on heritage rather than performance. In contrast, we provide optical comparators that deliver the most favorable spec-to-price ratio in the market.
For heavy industrial applications, our horizontal series is engineered for durability, offering sheer perfection for rigorous environments where heavy components are the standard. Conversely, for facilities demanding rapid throughput, our vertical line is engineered for speed, especially when paired with our automated edge detection accessories to eliminate human error.
Explore our full range of Optical Comparators today to identify the ideal configuration for your inspection requirements.
