If your business involves producing microscopic gears for high-end timepieces or stamping out metal connectors for the automotive sector, you cannot simply glance at the part and hope it fits. You require inspection equipment that delivers absolute certainty.
Yet, we frequently see facility managers pausing, trying to locate the right machinery that doesn't consume the entire annual budget. So, if you are new to this technology or looking to upgrade, you are likely asking: what is an optical comparator, and why should it matter to your production floor?
What Is an Optical Comparator?

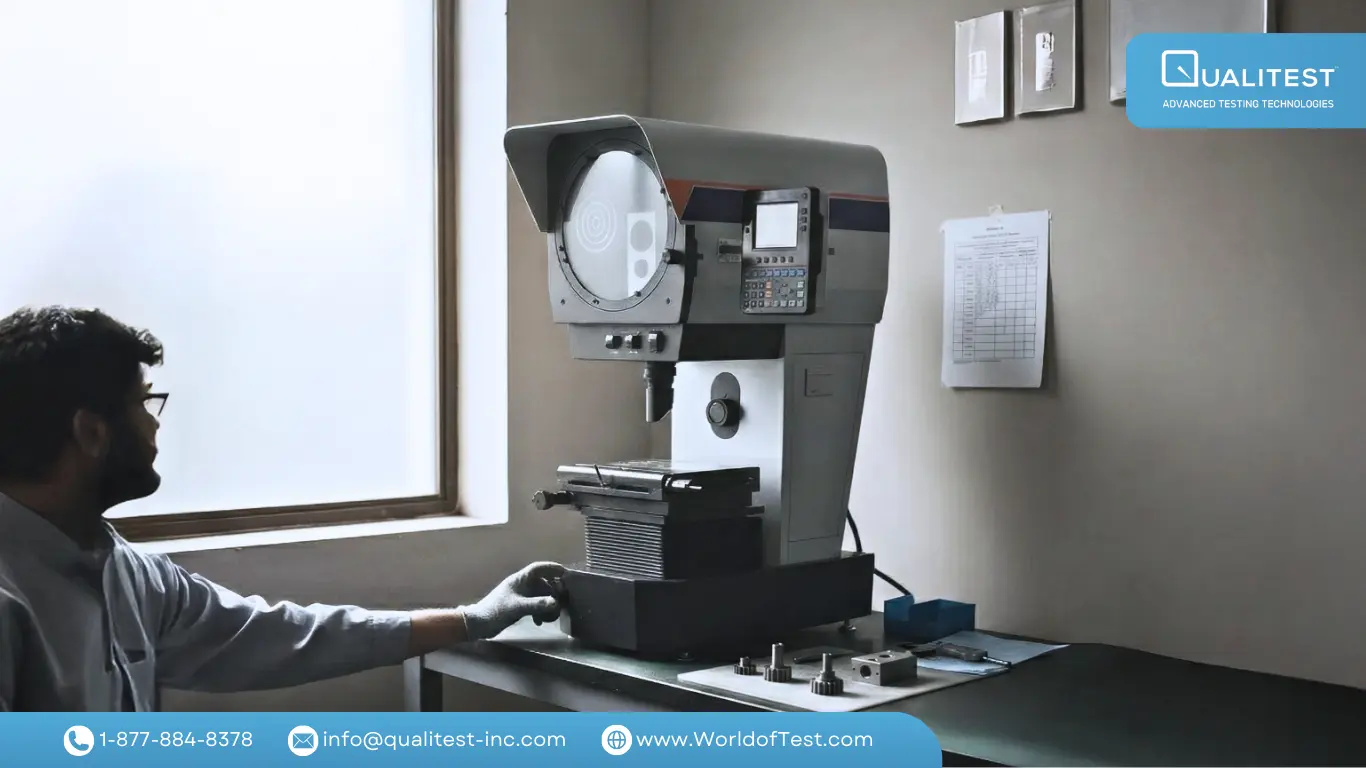

An optical comparator is a specialized inspection machine that projects a magnified shadow of a workpiece onto a glass screen to allow for precise measurement and inspection.
When we define what is optical comparator technology (often called a profile projector), we are describing a serious industrial workhorse. It acts as an optical measuring instrument that magnifies surface features to allow direct measurement of dimensions, profiles, and angles on a screen or against a standard reference at the correct magnification (Chen, 2016; Butler & Duggan, 1989).
It acts effectively as a magnified shadow graph for engineers who care deeply about microns. This enlarged image allows you to verify your work against a master drawing or measure the dimensions directly on the glass. It bridges the gap between manual hand tools (like calipers that might pinch too hard) and those incredibly expensive digital camera systems.
Ultimately, answering what is an optical comparator comes down to one thing: it is the most reliable way to see your parts clearly without digital interference.
Related article: How to Use an Optical Comparator: A Step-by-Step Guide
The Function of Optical Comparator Technology
To truly appreciate why this machine is a legend in workshops everywhere, you have to examine the function of optical comparator setups.
The primary function of optical comparator technology is to project an enlarged shadow or image of the object, enabling manual or automated comparison and measurement of the object's profile (Butler & Duggan, 1989). You place a component on the stage, a light shines against it, and—instantly—a sharp shadow appears on the screen.
In our view, this specific function of optical comparator usage provides insights that a simple spreadsheet of numbers cannot:
- Checking Measurements: You can verify lengths and angles to ensure they are strictly accurate. For instance, if you are machining a custom screw, you can measure the exact thread pitch and angle on the screen without needing a specialized thread gauge.
- Surface Inspection: It is not just about shadows; with surface illumination, you can inspect those small scratches and imperfections on the face of the part. Picture a plastic seal with a hairline fracture; surface illumination reveals that defect instantly, saving you from shipping a leaky product.
- The Blueprint Overlay: You can place a transparent drawing right on the screen to see if the shadow matches the design. Imagine you have a complex stamped metal gasket; you lay the transparency over the shadow, and you can instantly see if a curve is off by a fraction of a millimeter.
Key Characteristics of Optical Comparator Systems
If you are searching for one of these units, specific characteristics of optical comparator models separate the basic equipment from the professional-grade tools. Key characteristics include high accuracy, the ability to measure linear and circular dimensions, and the need for periodic calibration to maintain measurement reliability, with uncertainties in magnification and positioning carefully evaluated (Chen, 2016).
Telecentric Optical Systems
One of the most defining characteristics of optical comparator accuracy is the lens quality. We utilize high-grade telecentric lenses because they prevent the image from skewing or warping.
Standard lenses can create a "fun house mirror" effect where an object looks different depending on how close it is to the lens. Our lenses eliminate that perspective error. If you are measuring a cylinder, a step-machined part, or anything with depth, this feature is the only way to ensure the shadow represents the true dimension.
Sturdy Staging Mechanics
The table where you place the part needs to glide smoothly, but more importantly, it needs to support weight without sagging. It must slide along the X and Y axes without any jerky movements or "backlash"—that frustrating moment when the numbers drift after you let go of the handle.
We build our stages to be industrial-strength and rigid, ensuring that the coordinates you see on the screen are the coordinates that actually exist on the part.
Magnification Versatility
You need the ability to swap lenses (10x, 20x, 50x) to match the task at hand. A 10x lens gives you the "big picture" of the entire profile, while a 50x or 100x lens acts like a microscope for checking thread roots or tiny surface fractures.
Having the option to switch rapidly means you aren't stuck with a one-trick pony; you can inspect a large gasket and a micro-chip pin on the same machine.
Leaving Manual Math Behind with Digital Readouts (DRO)
Here is another one of those vital characteristics of optical comparator setups that you should not ignore: the computing element. Modern systems often integrate digital transducers and edge sensors for coordinate measurement (Butler & Duggan, 1989).
We firmly believe that if you are still calculating geometry with a pencil and paper, you are leaving productivity on the table. That is why our machines come equipped with advanced systems like the Color Screen Multifunction Digital Readout - QDP400. It performs the difficult calculations (radius, angles, distances) instantly.
Furthermore, for operators who want to eliminate the "eyeballing" factor entirely, integrating the Edge Finder - QEF-300 allows the system to detect the shadow boundary automatically. It prevents your operators from experiencing fatigue and ensures the data is trustworthy every single time.
Who Benefits? Key Industries and Applications
These instruments are widely used in industries such as electronics, semiconductors, and mechanical manufacturing for inspection and quality control (Chen, 2016; Butler & Duggan, 1989).
Because they measure components without deforming them, they are a lifesaver for anyone producing soft or irregularly shaped parts. The non-contact function of optical comparator inspection is critical in these sectors:
- Aerospace: Critical for examining cooling holes in turbine blades where a mistake is simply not an option.
- Medical Manufacturing: Perfect for verifying the complex curves on bone screws and implants that must be flawless.
- Automotive: Excellent for checking gaskets and cam profiles quickly before they move down the assembly line.
- Electronics: Absolute necessity for verifying connector pins and tiny circuit board pathways.
- Defense: Used to inspect firing pins and tactical equipment that need to function when it matters most.
- Plastics & Rubber: Ideally suited for measuring flexible O-rings and seals that would distort if you attempted to squeeze them with calipers.
- Tool & Die: The gold standard for examining drill bit angles, cutter wear, and the precision of stamping molds.
Optical Comparator vs. Vision Systems: The Reality
We constantly hear the debate about whether to invest in a comparator or a fully automated vision system.
You might ask, what is optical comparator efficiency compared to full automation? While advances have enabled automated measurement processes that produce data similar to coordinate measuring machines, they generally remain limited to 2D operation (Butler & Duggan, 1989).
We are going to state it clearly: typically, the comparator is the smarter pick for cost-efficiency and shop-floor durability. However, if you need a bridge between the two worlds, units like our Horizontal Video Projector - QPH-3015 offer video capabilities while keeping the process grounded.
Read more: Optical Comparator vs Vision System: Which is Better?
Choose the Best Optical Comparator from Qualitest
We know that no two factories are identical. We also realize you have financial targets to meet.
Optical comparators are valued for their precision, ease of use in inspection, and adaptability, making them essential tools in manufacturing quality assurance (Chen, 2016; Butler & Duggan, 1989). That is why we engineered a lineup of projectors that balance top-tier accuracy with sensible pricing.
- For Flat, Delicate Parts: If you are inspecting gears, cams, or small stamped parts, the Digital Vertical Profile Projector - QVP300 (or its larger sibling, the QVP400) provides the ideal top-down projection setup.
- For Heavy Mechanical Parts: When dealing with shafts or heavy machined components that need to be held between centers, you require the solid, unyielding support of the Digital Horizontal Profile Projector - QPH350-2010 or the heavier-duty QPH400-3015.
Related article: Choosing a Vertical vs Horizontal Optical Comparator
We view these machines not just as another purchase, but as a method to ensure your quality remains unbeatable. If you are ready to stop guessing and start measuring with absolute confidence, we are here to help you select the right tool.
Check out our full inventory of Optical Comparators here or contact our team today to discuss your requirements.
